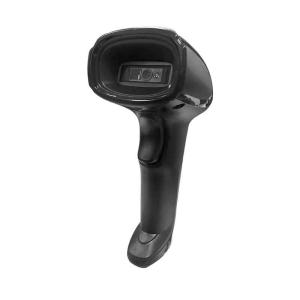

Handheld SC20/SC20-BT Barcode Scanner 1D/2D Wired/Wireless
Description:
This barcode scanner features long-range Bluetooth transmission, fast decoding, extended battery life, and a portable, durable design, making it ideal for logistics warehousing and courier scanning.
Parameters:
| Item Name | Specific Parameters |
|---|---|
| Readable Symbologies (1D) | CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5 ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11, ISBN, Plessey, MSI_Plessey, CODE32, INDUSTRIAL25, STANDARD25 |
| Readable Symbologies (2D) | PDF417, MicroPDF417, QR Code, Aztec, DataMatrix, Maxicode, MicroQRcode |
| Reading Precision | ≥ 4mil |
| Resolution | 300,000 global pixels |
| BLE Bluetooth Transmission Distance (Open Outdoor) | 50 - 100 meters |
| 2.4G Transmission Distance (Open Outdoor) | 100 - 150 meters |
| Barcode Sensitivity - Tilt | ±45° |
| Barcode Sensitivity - Rotation | ±25° |
| Barcode Sensitivity - Deflection | ±75° |
| Minimum Contrast | ≥ 30% |
| Light Source | 620nm visible red light - emitting diode |
| Image Sensor | CMOS |
| Number of Barcode Reads on a Single Full Charge | More than 100,000 times |
| Battery Capacity | 1800mAh |
| Battery Charging Time | It takes up to 3.5 hours to fully charge |
| Operating Voltage | 3.3V |
| Maximum Power Consumption | 550mW |
| Current - Maximum Current | 165mA |
| Current - Operating Current | 145mA - 165mA |
| Current - Standby Current | 95mA |
| Current - Sleep Current (Wireless Product) | ＜10μA |
| Charging Current | 450mA |
| Appearance Dimensions (Length × Width × Height) | 159mm × 65.5mm × 85mm |
| Weight (Excluding Wiring) | 165g |
| Prompt Method | Buzzer and LED indication |
| Storage Temperature | -40°C ~ 60°C |
| Operating Temperature | 0°C ~ 50°C |
| Relative Humidity | 0 ~ 95% (No condensation) |
| Drop Height (Free Fall) | 1.5 meters |
| IP Protection Grade | IP52 |
